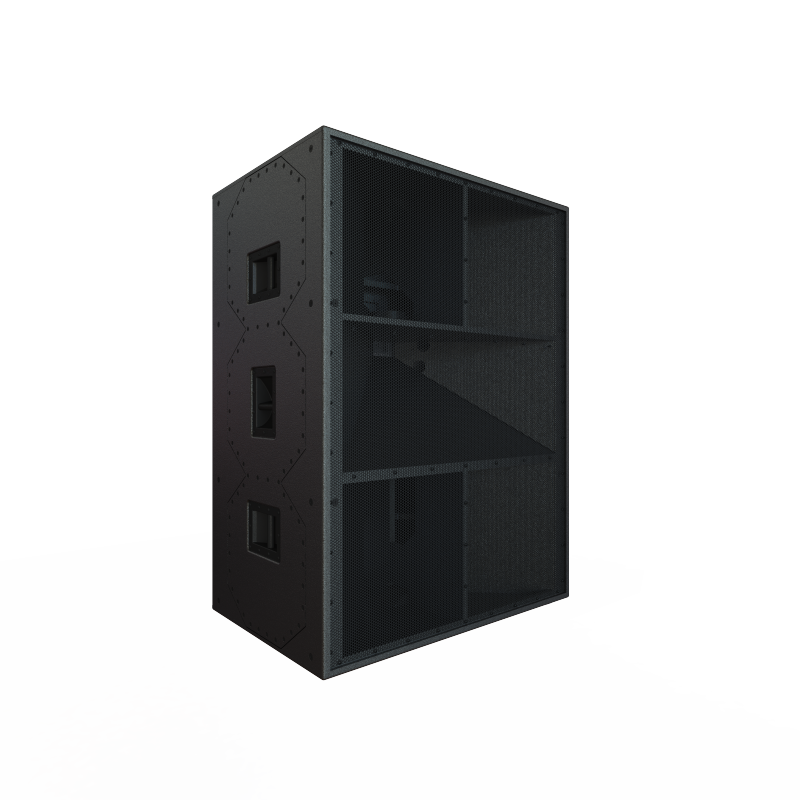

The J1-94 | Jericho Horn
The J1-94 | Jericho Horn
SPECIFICATIONS
Coverage Pattern
90˚ horizontal x 40˚ vertical
(0˚ on axis, 40˚ down -6dB)
Operating Frequency Range
47 Hz - 18 kHz +/-3dB
37 Hz - 24 kHz -10dB
Continuous Output 148 dB SPL
Peak Output 151 dB SPL
Sensitivity Band dependent
Magnitude Response 45Hz- 18kHz
Driver Complement
six 18" woofers
six 6" midrange drivers
three 1.4" HF drivers
Dimensions 60 x 45 x 30 inches
Weight 720 lbs
Rated Impedance
Low frequency 4ohm 6 x 4 ohm loads
Low frequency 8ohm 2 x 2 ohm loads
Midrange 1 x 4 ohm load
High 1 x 4 ohm load
Power Rating
LF > 17,000 W cont.
MR > 1200 W cont.
HF > 600 W cont.
The J1-94, or Jericho Horn, is simply the most accurate high-power loudspeaker ever created
A single cabinet produces quality audio well beyond 1000 feet from a true full range point source. The J1-94 houses six 18 inch drivers, six 6 inch mid-range drivers and three 1.4 inch high frequency drivers. That’s 15 drivers seamlessly combining together to provide more than 145 dB SPL.
